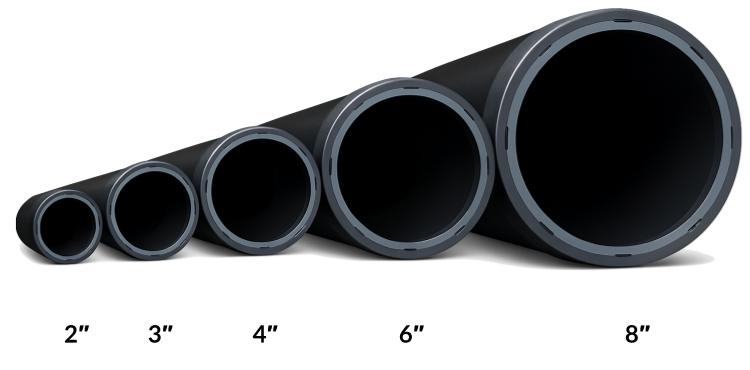

We manufacture flexible composite pipes up to 8 inches in coils and up to 20″ in bars for working pressures up to 3000 psi under our registered brand FORTIUSPIPE. Our product is the result of work of the company engineering staff and has a number of characteristics that provide an indisputable advantage over the analogues available on the market. Pipes have increased reliability and strength due to special reinforcing profiles, which ensure their more dense laying with uniform loading, and polymer anti friction layer under the outer sheath. The design of reinforcing profiles and technology of their laying is the company’s own development.
* other sizes available
OUR PRODUCTS

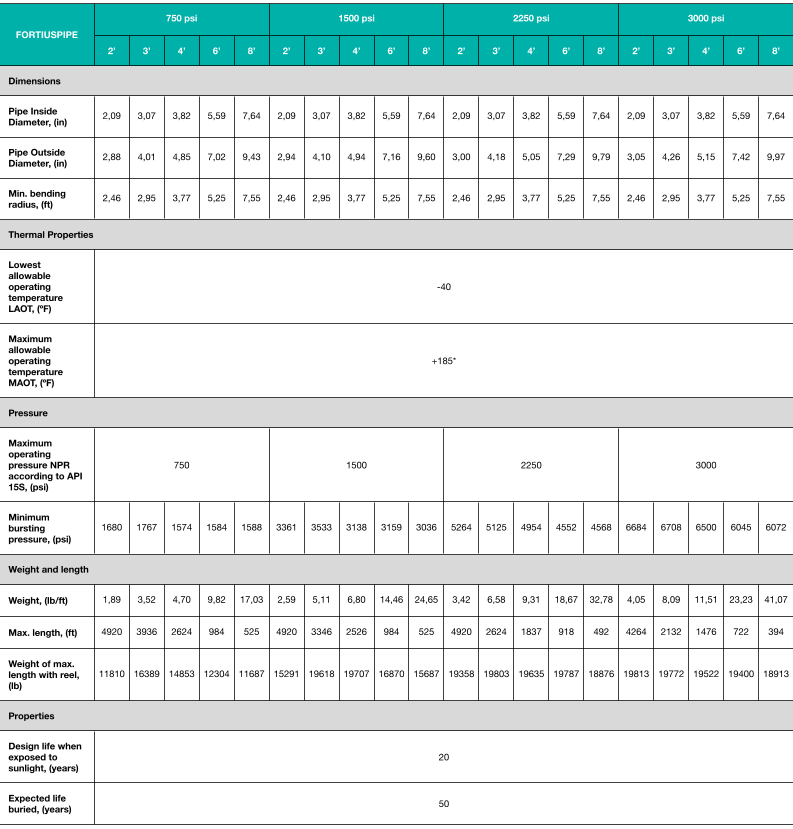

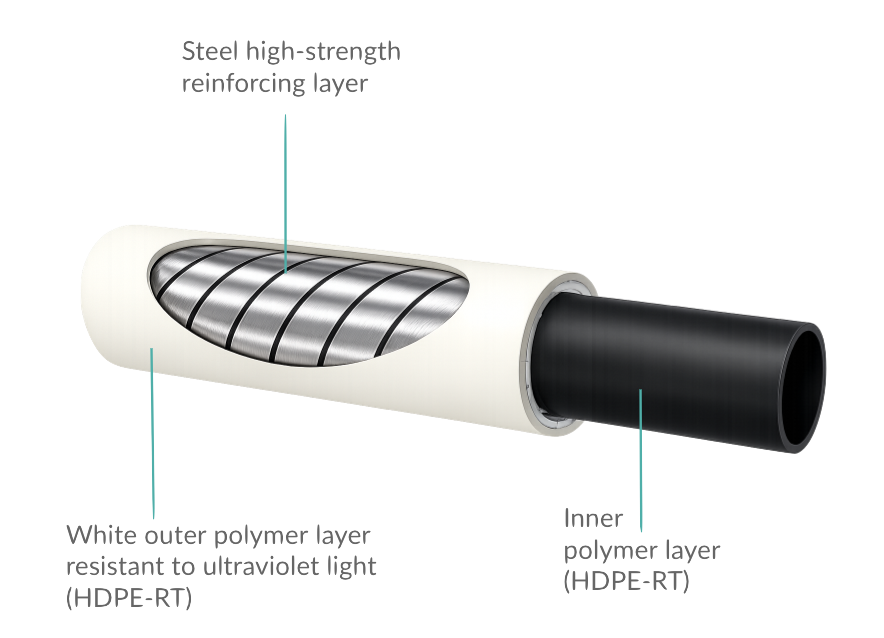

Metal Tape Reinforced Composite Pipe
The pipe consists of inner and outer polymer layers and intermediate
reinforcing layer based on profiled metal tapes.
Nominal diameters (in): 2-8
Operating pressure (psi): 750-3000
Operating temperature (°F): -40…+185*
Transported fluids: oil, gas, and water.
FORTIUSPIPE is produced both
for onshore and offshore
applications and differs by material
of its outer sheath.
* Higher temperature resistant pipes are available

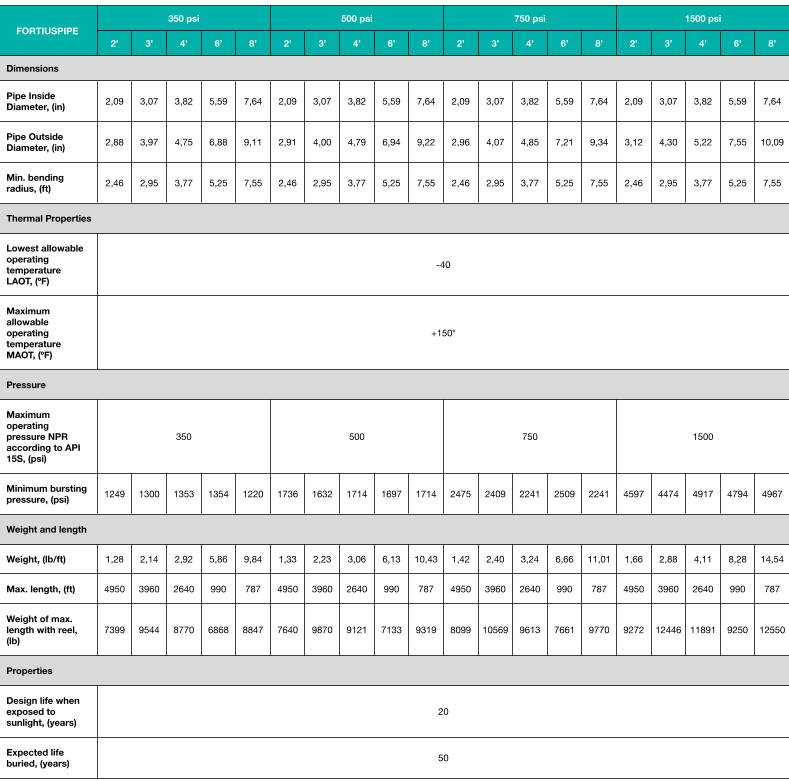

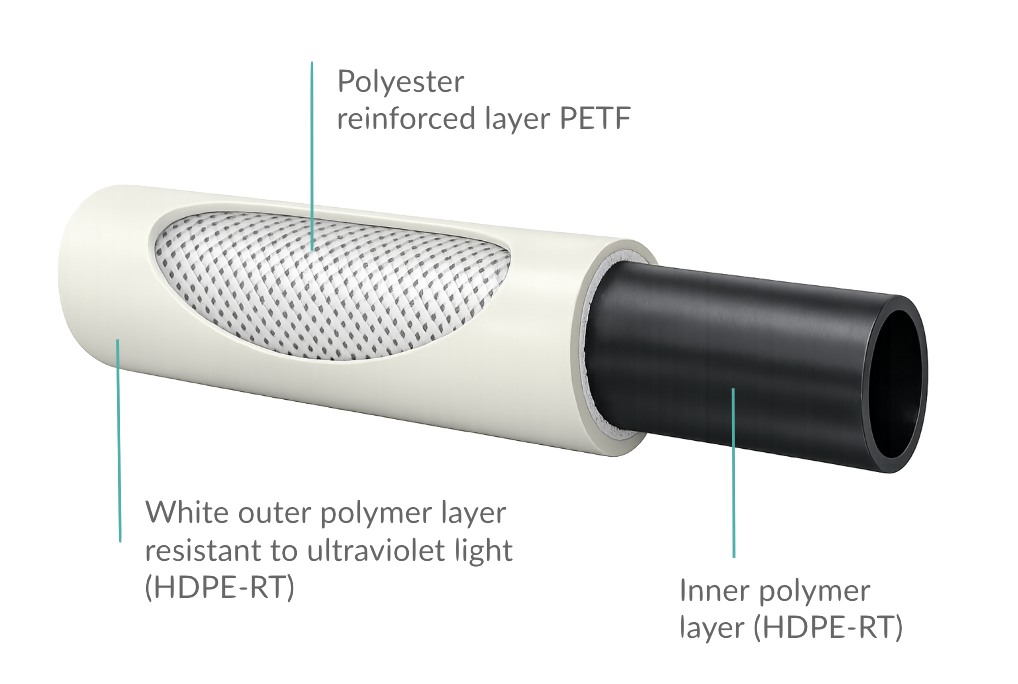

Polyester Yarn Reinforced Composite Pipe
The pipe consists of inner and outer polymer layers and intermediate
reinforcing layer based on polyester yarns.
Nominal diameters (in): 2-8
Operating pressure (psi): 350-1500
Operating temperature (°F): -40…+150*
Transported fluids: oil, gas, water,
abrasive materials, aggressive
environments etc.
FORTIUSPIPE is produced for onshore applications and relining.
* Higher temperature resistant pipes are available

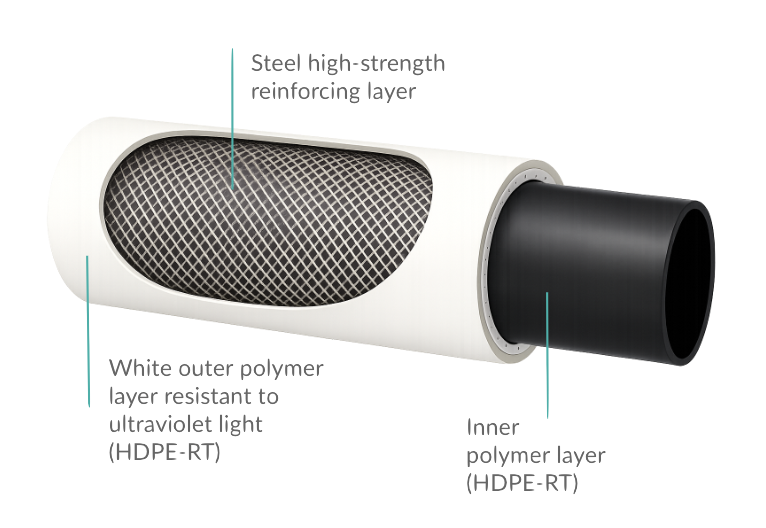

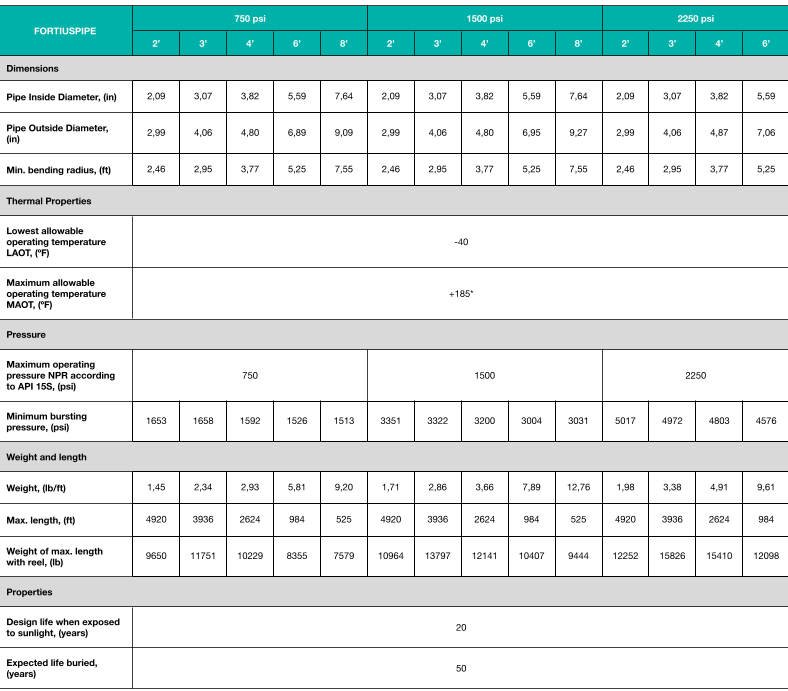

Steel Cable Reinforced Composite Pipe
The pipe consists of inner and outer polymer layers and intermediate
reinforcing layer based on steel cables.
Nominal diameters (in): 2-8
Operating pressure (psi): 750-2250
Operating temperature (°F): -40…+185*
Transported fluids: oil, gas, water
FORTIUSPIPE is produced both for
onshore and offshore applications
and differs by material of its outer sheath.
* Higher temperature resistant pipes are available
Fiberglass Reinforced Composite Pipe

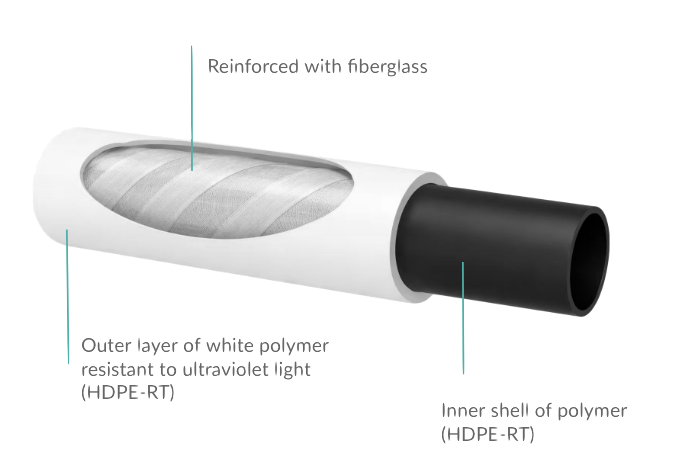

The pipe consists of internal and external polymer layers and an intermediate fiberglass reinforcement.

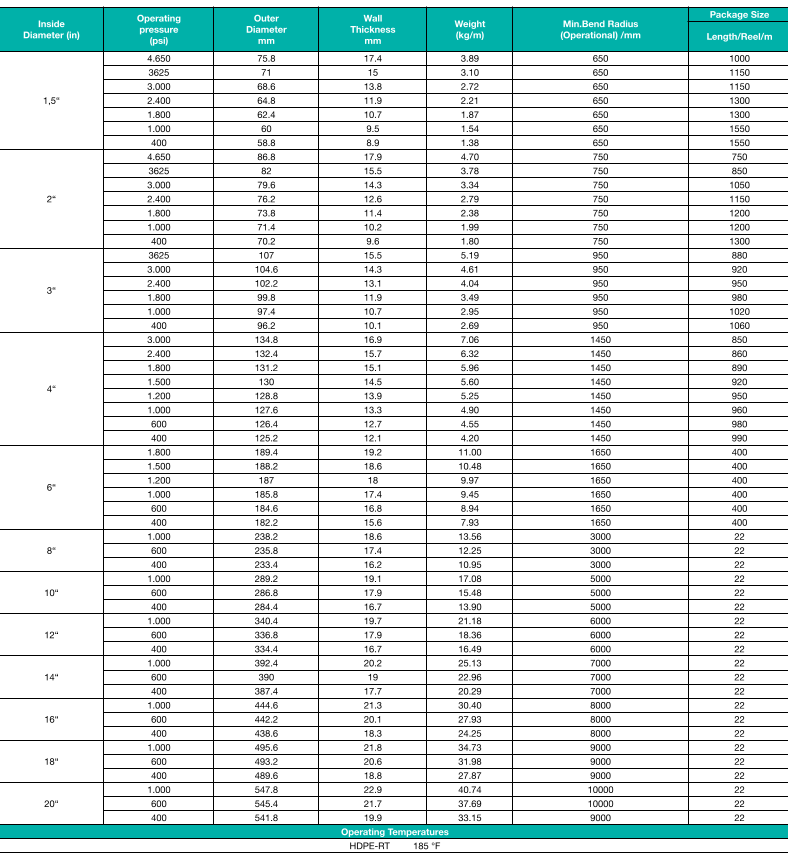

Nominal Diameter (in): 1.5–20
Operating Pressure (psi): 400–4650
Operating Temperature (°F): HDPE-RT 185 °F

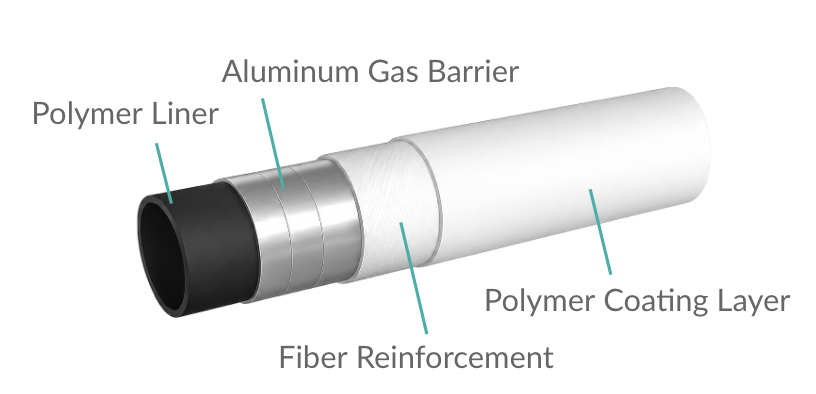

* Complete gas tight pipe available
