FORTIUSPIPE flexible pipes are connected with metal pipes and various details using end fittings. Pipes are supplied with two kinds of end fittings: flange pipe fitting and the welded pipe fitting. Flexible pipes are interconnected by means of symmetric pipe fittings.

Types of fittings

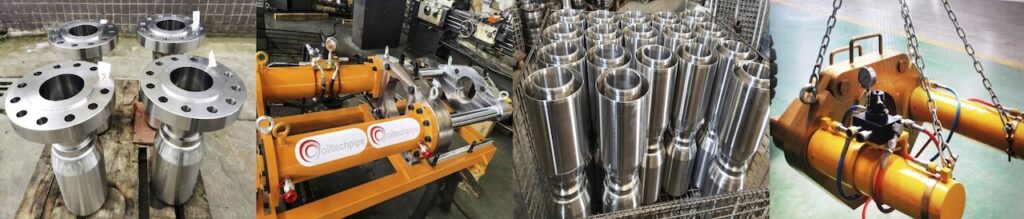

Custom manufacturing

Configuration is at the request of customers. It is possible to manufacture flanges according to ANSI, DIN, ASTM, ISO

Fitting Installation

End fittings are installed in several consecutive stages — swaging along the inner surface, swaging along the outer surface.

The purpose of swaging is the permanent formation of the end fitting walls according to the pipe size. This operation provides uniform tight crimp of the pipe walls by the fitting, both on the inner and outer surfaces.

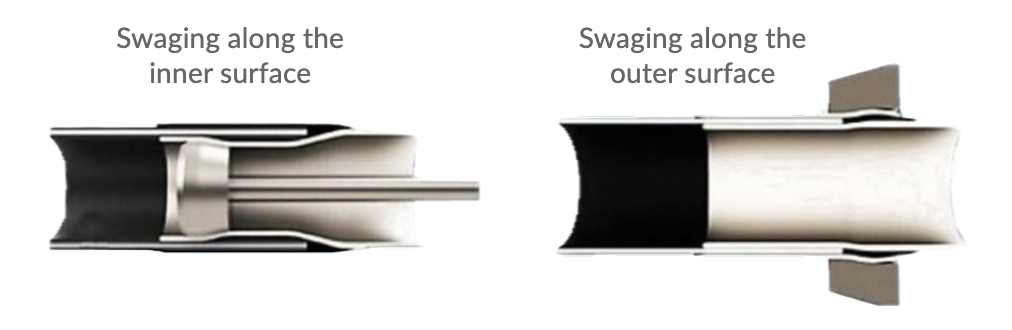

Schematic diagram of broaching the fitting along its inner and outer surface:
